FOTO - hydrobetatron

"PARKOMOV-LIKE"
WORK IN PROGRESS

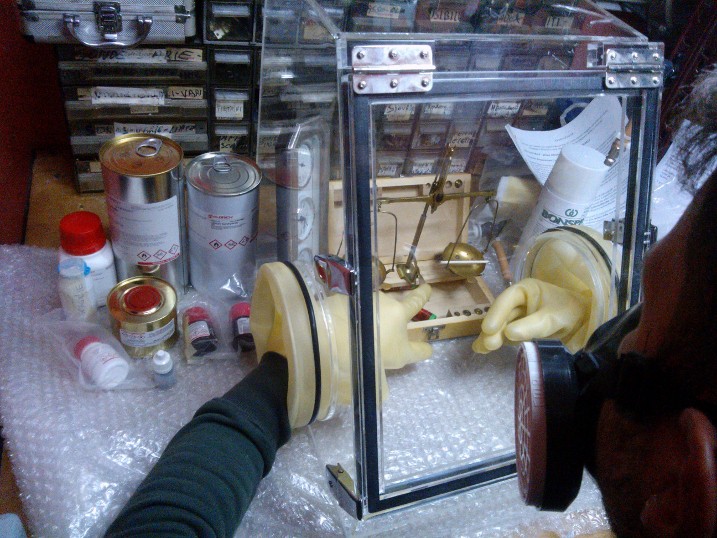

Start of procedure powder loading of the capsules in the glove box

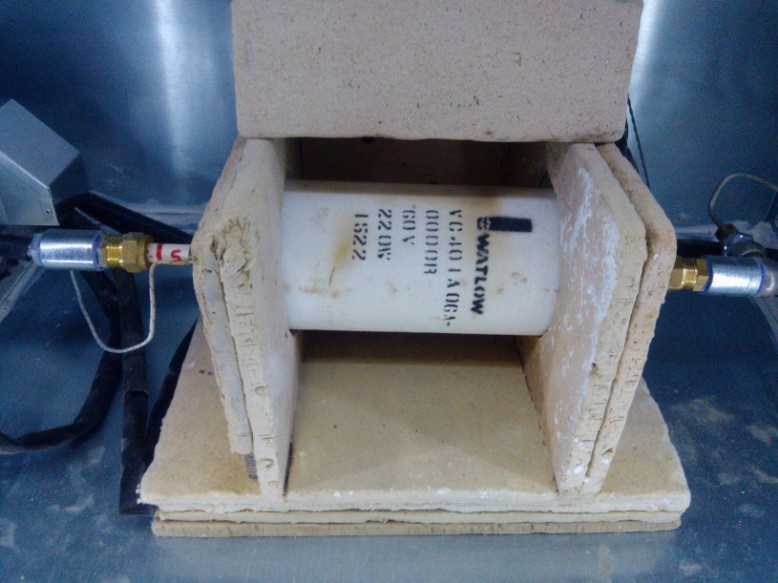

Fig.1   Open Power’s   "Upgraded Parkhomov-like"   Reactor in the Safety Chamber under
         temperature, pressure and webcam control  (designed and assembled by Q. Cuccioli)

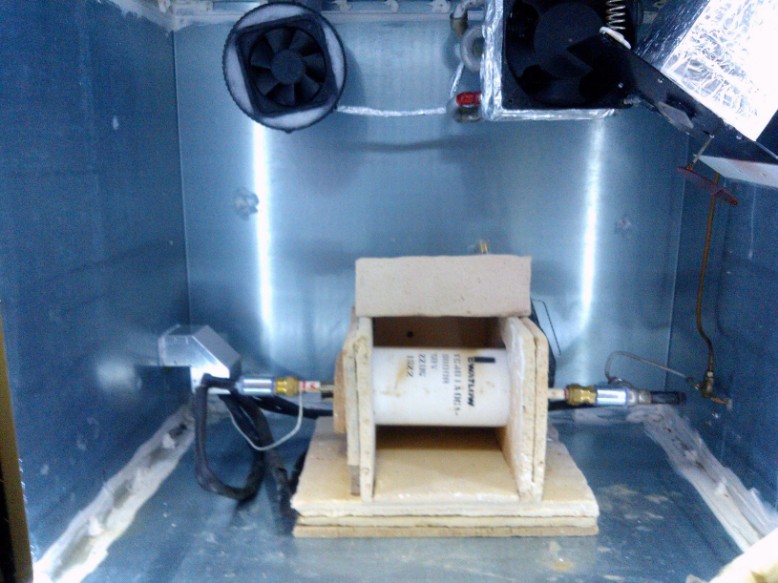

Fig. 2   Webcam in the safety box

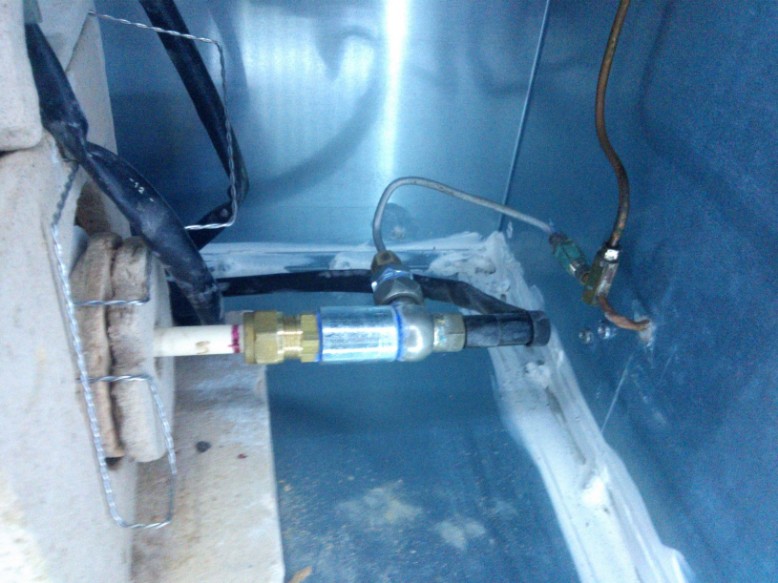

Fig. 3  Left electrode

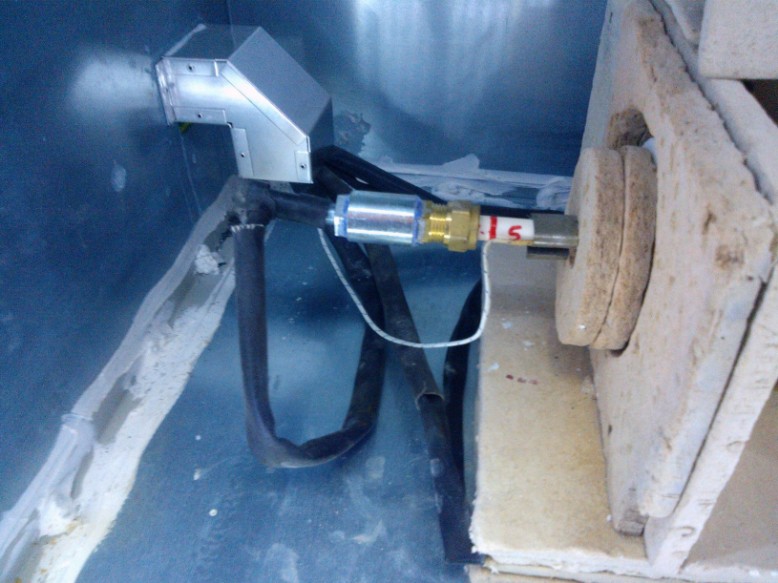

Fig. 4   Right electrode

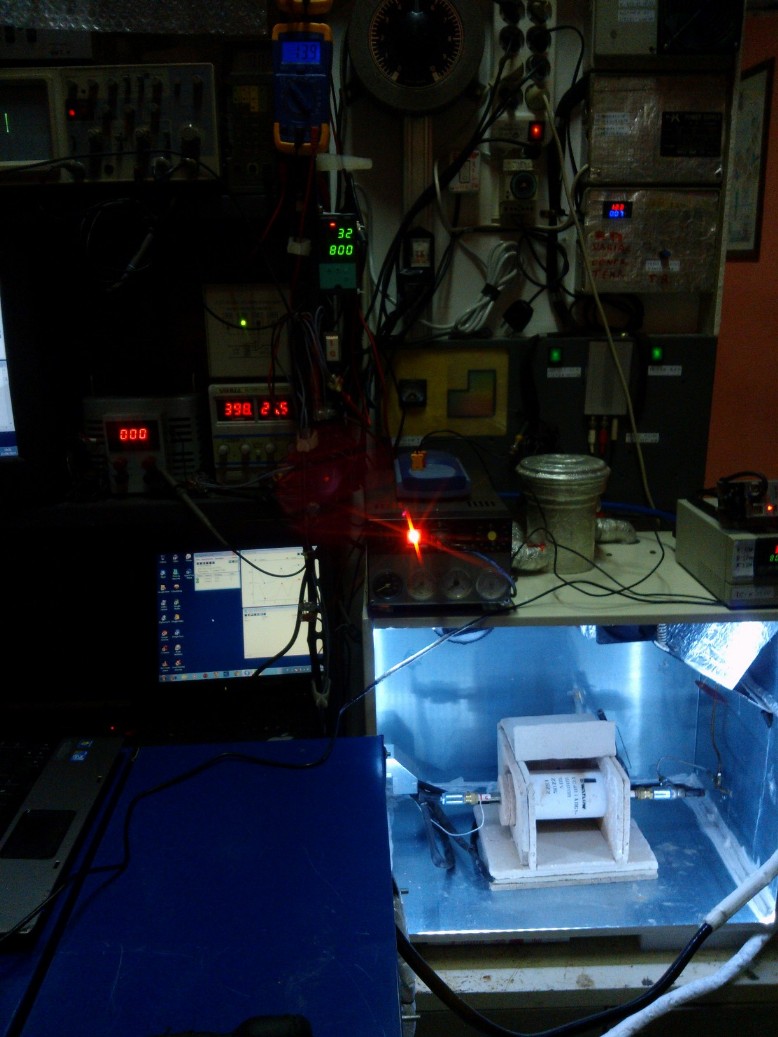

Fig. 5  Overall view

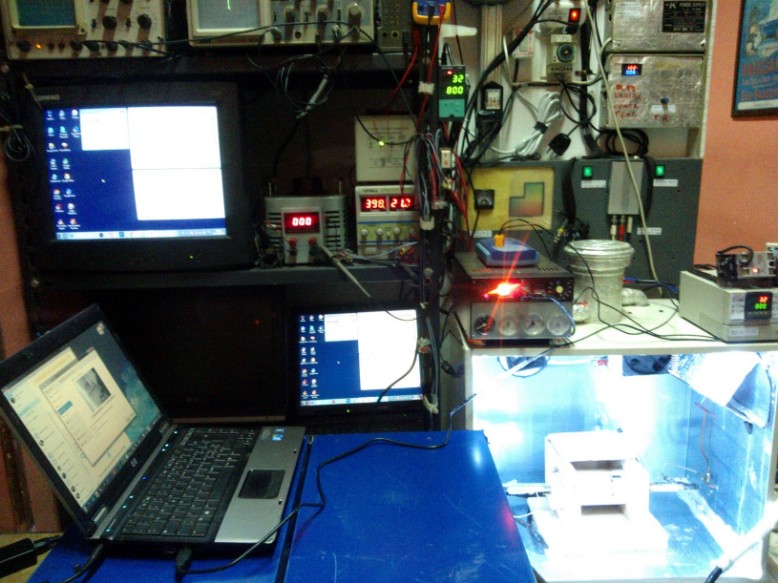

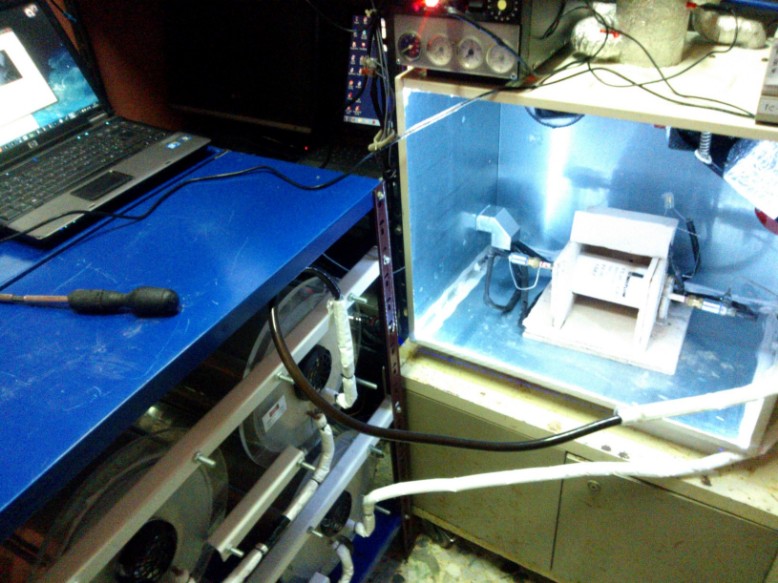

Fig. 6  Measuring devices and reactor (1)

Fig. 7  Measuring devices and reactor (2)

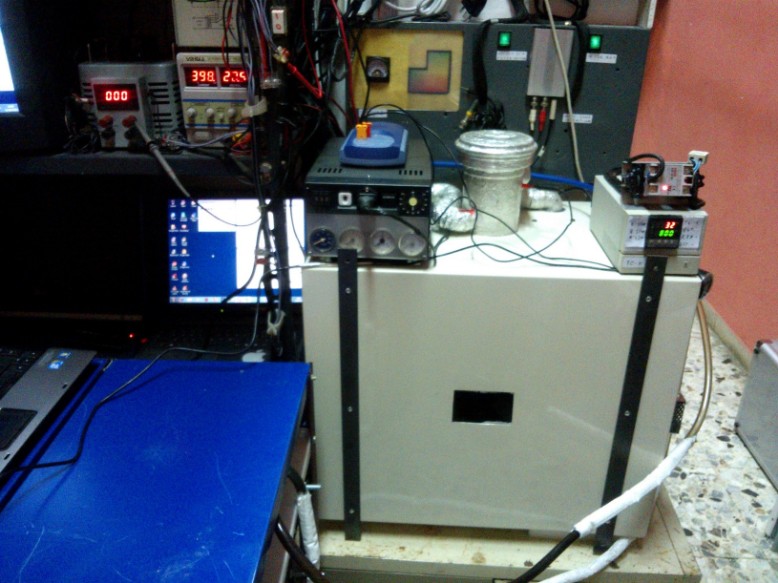

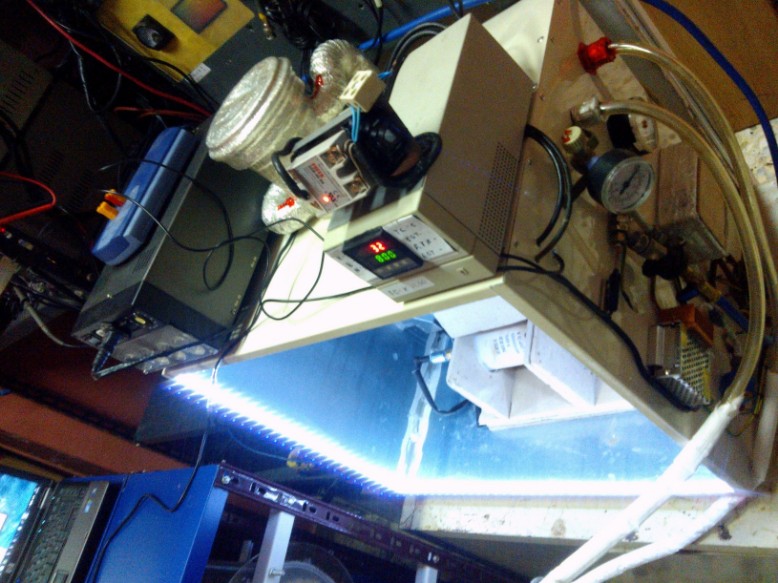

Fig. 8  Temperature and pressure control in the closed safety box

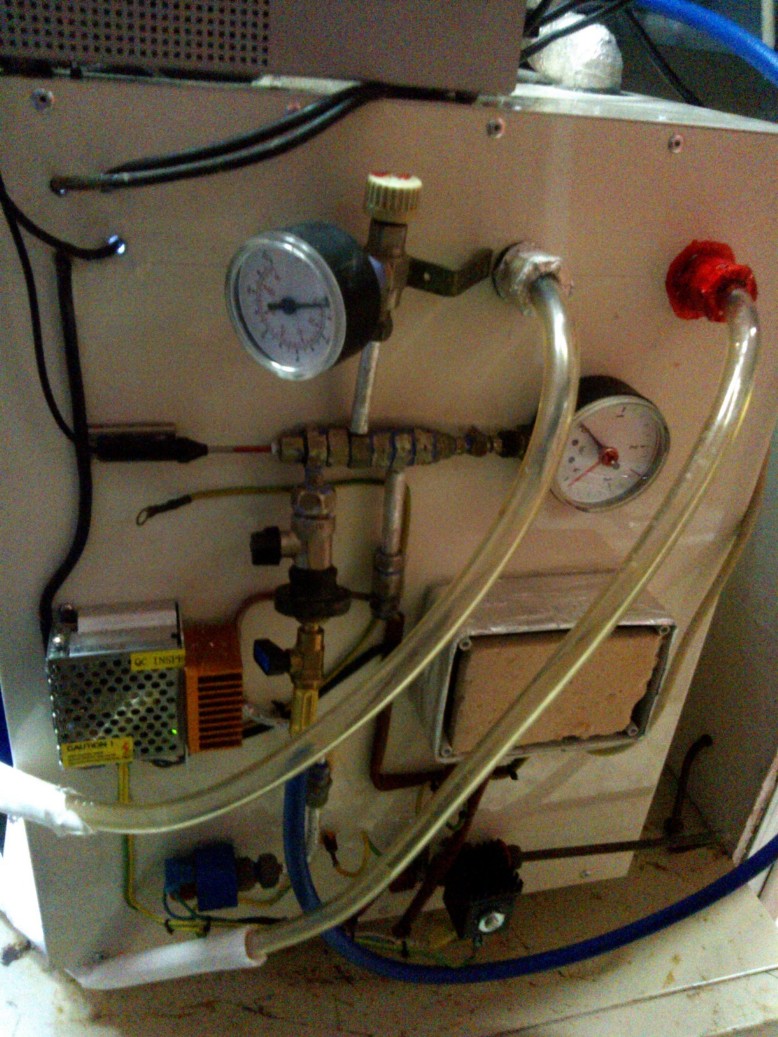

Fig. 9  Reactor pressure control

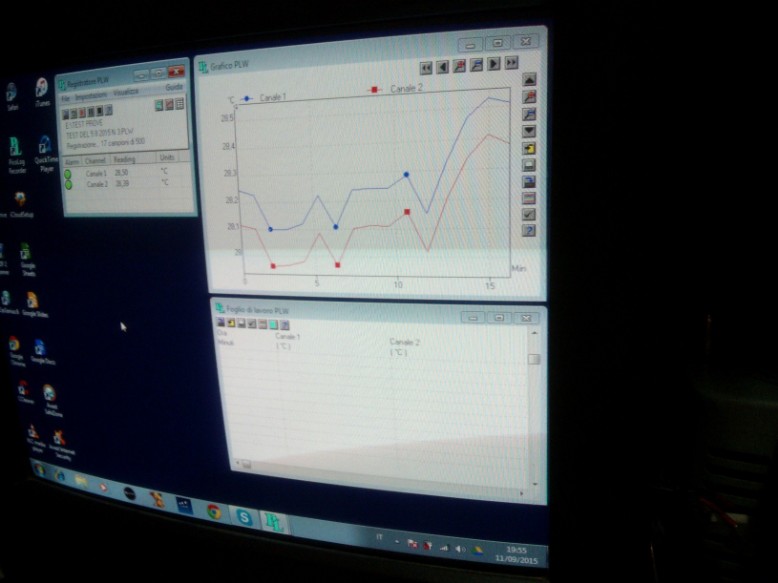

Fig. 10   Reactor temperature recording

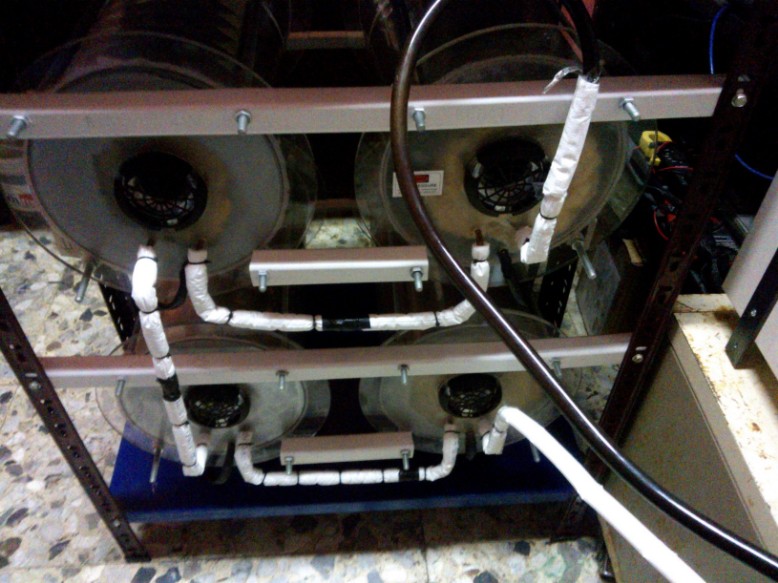

Fig. 11   Box refrigeration system

Fig. 12  Box refrigeration system (particular)

Fig. 13   Reactor temperature control
